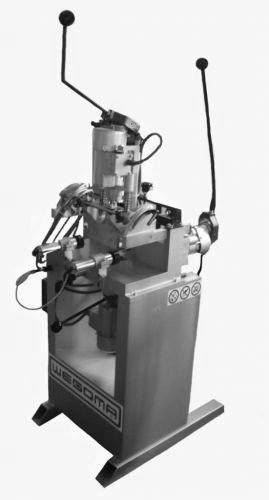

Wegoma WSK-8-3

Wegoma WSK-8-3

Manual Waterslot Drainage Router

Description

Manually operated for the most precise results.

Enquire Now Download Brochure

Full Description

Boasting three routing units, including vertical from the top and bottom for entry and exit drainage slots, as well as the availability to face drain from horizontal units. Arriving brushless and with low noise, this robust, powerful machine is equipped with a three-phase motor.

Adjustable, the top routing unit of the WSK-8-3 by Wegoma tilts up to 45° and works with manually positioned scales and stops. For safety and precision, profile is held in place thanks to pneumatic double clamping.

For further details on the Wegoma WSK-8-3 including stock and delivery availability, please contact the Avantek team on sales@avantekmachinery.co.uk.

Product Features

  • Slot router
  • Three routing units: Vertical from the top and bottom for entry and exit drainage slots and the facility to face drain from the horizontal units
  • Robust, low noise and brushless, three phase motor
  • Angularly adjustable top routing unit. Tilting up to 45°
  • Manual positioned to scales and stops
  • Pneumatic double clamping

Technical Data

Weight 135kg
Power Supply 220/400V,50/60Hz
Power Each Motor 280W
Milling Area 100 x 80 x 50mm
Routing Spindle Speed 11,000rpm
Milling Depth 50mm
Air Supply 6-8 bar
