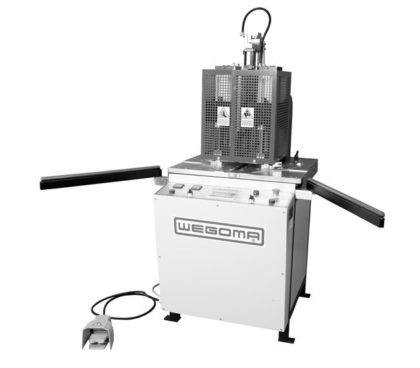

Wegoma WSA-1-E Single-head Reverse Butt Welder

Wegoma WSA-1-E

Single-head Reverse Butt Welder

Description

Offering the ultimate in versatility in one compact machine, the Wegoma WSA1E is the ideal solution for a range of applications.

Enquire Now Download Brochure

Full Description

Variable angle fences enable the Wegoma WSA-1-E to achieve welded angles between 30° and 180° on 150mm, 180mm and 225mm cills. The WSA-1-E boasts the ability to achieve double-reverse butt welding thanks to the large setting and heater plates.

Easy to operate, this machine’s parameters are easily adjustable via a Siemens PLC control. For more information on the WSA-1-E by Wegoma including stock and delivery availability, contact the Avantek team on sales@avantekmachinery.co.uk.



Product Features

  • Variable angle fences to enable the welding of all angles between 30-180°
  • Double reverse butt welding possible due to large setting and heater plates
  • Automatic adjustment of all welding times and parameters via Siemens control
  • Easy change Telfon procedure
  • Support arms fitted as standard
  • Fully guarded
  • Two stage safety clamping foot pedal controlled
  • Reverse cycle facility that enables the operator to reposition a profile not initially correct
  • Heated restriction knives adjustable from 0.5mm-2mm (standard)
  • Fourth corner welding cycle that removes the setting plate for small frame/sash sizes
  • Corrosion proof guide rails with INA bearings
  • Maintenance friendly

Technical Data

Length 1000mm
Width 1000mm
Height 2350mm
Weight 310kg
Power Supply 240,1PH, N.PE
Power Output 3500W
Compressed air supply 6-8bar
Air Consumption 120L/min
Welding angle range 30-180
Knife Temperature Max 65° C
Welding plate Temperature Max 300° C
Profile Width Max 140mm
Profile Height Max 210mm
