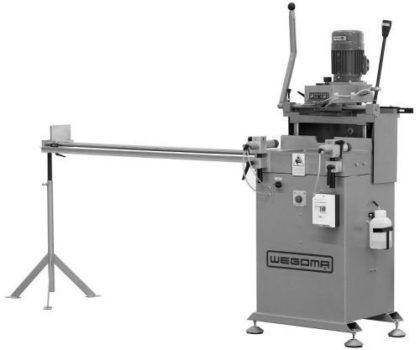

KF-227 (W/D) One Spindle Copy Router

Wegoma KF-227 (W/D)

One Spindle Copy Router

Description

Designed to work with aluminium, uPVC and steel profiles, the Wegoma KF-227 is a multifunctional solution for window fabricators.

Enquire Now Download Brochure

Full Description

Both the W and D versions of this One Spindle Copy Router boast a horizontal pneumatic double clamping unit, automatic central switch and a cooling spray unit.

Size and form of routed shapes are adjusted using a template system. The KF-227 offers three routing depth settings and a vertical routing head. The machines ‘W’ version is a Single Phase Current while the ‘D’ version is a Three Phase Current.

For additional information about the KF-227 One Spindle Copy Router by Wegoma, including stock and delivery information, please contact the Avantek team on sales@avantekmachinery.co.uk

Product Features

  • KF227W is Single Phase Current
  • KF227D is Three Phase Current
  • Vertical routing head
  • Pneumatic horizontal double clamping
  • Revolver stop for the setting of three routing depths
  • One blank template standard

Technical Data

Weight 105kg
Power Supply 220/400V,50/60Hz
Power 1.1kW
Speed 2800rpm
Milling Area 220 x 115mm
Routing Depth 110mm
Routing Spindle Speed 12,000rpm
Max. Stroke Routing Head 260 x 110mm
Copy Pin Diameter 5mm and 8mm
Air Supply 6-8 bar
