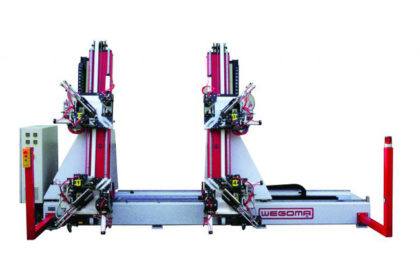

Wegoma WSA-4-LVE Vertical Welding Machine

Wegoma WSA-4-LVE

Vertical Welding Machine

Description

Fully automatic, the WSA-4-LVE executes consistently perfect corner welding at 90°

Enquire Now Download Brochure

Full Description

Designed to ensure your fabrication of sash uPVC window profiles is effortless, the Wegoma WSA-4-LVE Vertical Welding Machine is an excellent addition to a manufacturing line.

Coming equipped with a fully automatic ‘Burn to Size’ programme, industrial PC control and flexible, accurate processing, the WSA-4-LVE by Wegoma is easy to operate, even for novices.

With strong network communication, the WSA-4-LVE is ideal to integrate into an automatic welding and cleaning line. The machines head movement is driven by three phase frequency motors through linear ball screws with encoder control and the moves along a linear guide rail system.

For more information on the Wegoma WSA-4-LVE including stock and delivery information, please contact the Avantek team on sales@avantekmachinery.co.uk.

Product Features

  • Fully automatic vertical four corner welding of PVC window profiles at an angle of 90°
  • Fully automatic ‘Burn to Size’ program
  • Industrial PC control with friendly HMI
  • Flexible & accurate processing
  • Automatic monitoring of profile tolerance
  • Strong network communication
  • Integrate into automatic welding and cleaning line
  • Automatic welding of a complete PVC window/door frame or sash in one working cycle
  • Horizontal profile feeding with operator friendly insertion position
  • Head movement is driven by three phase frequency motors through linear ball screws with encoder control.
  • The welding head movements are along a linear guide rail system.

Technical Data

Machine Dimensions 4800x2650x2000mm
Weight 2580kg
Power output 240/400V,3PH,50Hz N. PE
Compressed air supply 6-8bar
Standard weld seam restriction 2mm
Special weld seam restriction 0.5m
Minimum profile size including blocks 300x300mm
Maximum profile size [WxH] 1700x2400mm
Minimum profile height 35mm
Maximum profile height 180mm
