Wegoma MS-550
Compound Mitre Saw
Description

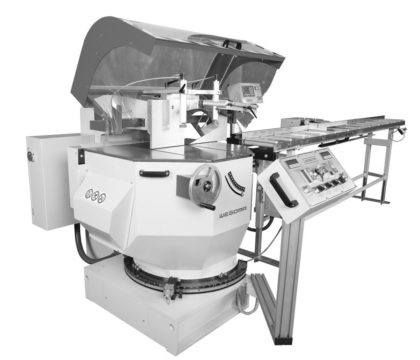

Designed to make fabrication as efficient as possible, the Wegoma MS-550 Compound Mitre Saw is a robust, efficient addition.
Enquire Now Download BrochureFull Description
The MS-550 comes fully-equipped with adjustable hydro-pneumatic saw feed and two vertical clamp cylinders located on the top. For precision cuts the saw blade has an adjustable inclination of 90° to 45° right via an easily accessible hand wheel on the front of the machine. Rotation of the table with the saw is variable by scale and ranges from 90° to 20° right.
With adjustable stops and angle positioning from 45° to 90° and intermediate degrees adjustable by scale, the MS-550 is an all in one mitre saw. Ask your Avantek team member for information about the optional digital display.
For further details about the Wegoma MS-550 including stock and delivery availability, contact the Avantek team on sales@avantekmachinery.co.uk.
Product Features
- Adjustable hydro-pneumatic saw feed
- 2 vertical clamp cylinders from the top
- Safety Cover and Dust Exhauster
- Saw blade inclination of 90° – 45° right via the hand wheel
- Rotation of table with saw unit from 90 – 20 left, right variable by scale
- Angle positioning 45°, 90°, 45° via adjustable stops
- Intermediate degrees adjustable by scale
- Optional Digital Display for the Mitre
Technical Data
| Weight | 1040kg |
| Power Supply | 230/400V,50 Hz |
| Power | 2.2kW |
| Compressed Air Supply | 6-8 bar |
| Rotation Seed | 2800 rpm |
| Angle Positioning Stops | 45°/ 90°/ 45° |
| HM Sawblade | 550mm |
