wegoma KF-228

Wegoma KF-228

Two-head Double Axis Copy Router

Description

Designed to make PVCu and aluminium door fabrication more efficient.

Enquire Now Download Brochure

Full Description

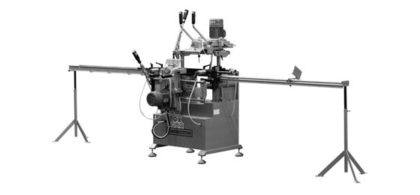

The Wegoma KF-228 Two-head Double Axis Copy Router can work on both sides of profile at the same time for equally excellent results.

Built for routing slots for locking bolts, keyholes and actuators, the KF-228 by Wegoma features two-step copy pin for various sizes of copy routing and variable controlled processing depth. Processing vertically and horizontally is available using the high speed copy pin milling head.

For further information on the Wegoma KF-228 Two-head Double Axis Copy Router including stock and delivery availability please contact the Avantek team on sales@avantekmachinery.co.uk

Product Features

  • Two-step copy pin for various sizes of copy routing
  • Variable controlled processing depth
  • Vertical and Horizontal processing is available
  • High speed copy pin milling head
  • One fixture can process two sides of profiles

Technical Data

Weight 200kg
Power Supply 220/380V,3PH,50Hz
Power Output 1.1kW
Spindle Speed 12,000rpm
Stroke Spindle Speed 12,000rpm
Air Supply 6-8 bar
