wegoma akf-125-p

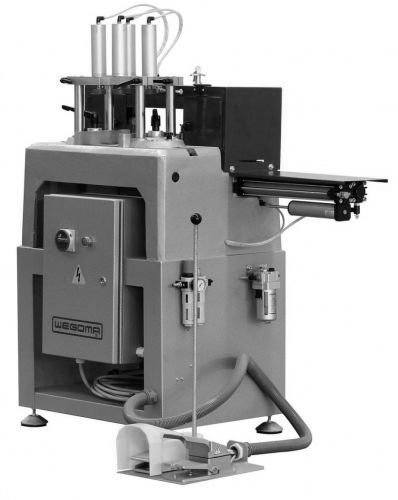

Wegoma AKF-125-P

End Milling Machine

Description

Versatile with the ability to be used on both uPVC and aluminium profile.

Enquire Now Download Brochure

Full Description

The Wegoma AKF-125-P End Milling Machine delivers high precision results thanks to its linear bearing and guide which provides long-time accuracy.

Boasting a hydro-pneumatic router feed and pneumatic double clamping device, the AKF-125-P offers fast tool change and a quick positioning system for four kinds of profiles for the highest possible efficiency. With double milling possible thanks to the vertical pneumatic clamping, the AKF-125-P by Wegoma is the ideal solution for a fabrication process.

For more information on the AKF-125-P End Milling Machine by Wegoma, including stock and delivery availability, please contact the Avantek team on sales@avantekmachinery.co.uk.

Product Features

  • Pneumatic double clamping device
  • Profile stop to both sides 60°
  • Depth stop for 4 positions
  • Quick change cutter replacement

Technical Data

Weight 50kg
Power Supply 220/400V,50/60Hz
Power 1.2kW
Speed 2800rpm
Max. Feed 380mm
Max. Depth 90mm
Max. Cutter Diameter 210mm
Milling Spindle Diameter 32mm
Max. Profile Width 100mm
Max. Profile Height 250mm
Compressed Air Supply 6-8 bar
