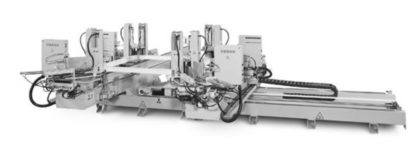

URBAN AKS 6600

URBAN AKS-6600

Horizontal Four-head Welding Machine

Description

Create the most efficient fabrication line with the addition of the cutting-edge URBAN AKS-6600 Horizontal Four-head Welding Machine.

Enquire Now Download Brochure

Full Description

Arriving fully equipped to produce high-quality results, this horizontal four-head welder delivers optimal efficiency thanks to its double welding option and its ability to weld profiles with co-extruded gaskets.

Designed to make manufacturing easy, the AKS-6600 boasts a diagonal release of the front clamping slides making it effortless to insert profile bars, and with the stop lath remaining in the front position, there’s no hassles even with the final profile.

Delivering consistently excellent results, the URBAN AKS-6600 has the available option of automatic plate adjustment from 0.2 – 2.0mm via PC – with no need for set up time or mechanic adjustments. For further information about the URBAN AKS-6600 Horizontal Four-head Welding Machine, including stock and delivery availability, please contact the Avantek team on sales@avantekmachinery.co.uk.

Technical Data

Weight 3100kg
Height 1600mm
Width 5200mm
Power supply 230V/400V 50-60Hz L1-L2-L3-N-PE
Compressed air supply 7 Bar
Air consumption 90 litres
Minimum profile height 40mm
Maximum profile height 200mm
Maximum finished product size 2700mm x 2500mm
