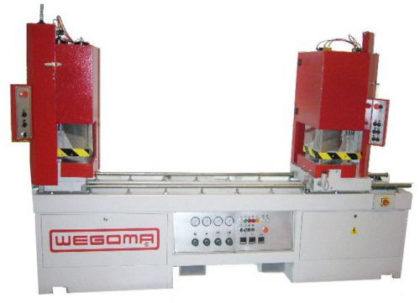

Wegoma WSA-2
Two-head Inline Corner Welding Machine
Description
Offering perfection in welding, even when special angles are required, the WSA-2 by Wegoma adds efficiency and consistency to a fabrication
Enquire NowFull Description
Boasting a stationary left welding head with automatic feed and a moveable right hand welding head, the WSA-2 also has a heated weld bead limitation of 0.2-2mm. With electronic machine control including temperature and compressed air monitoring, the WSA-2 is a breeze to operate.
For ease of operation, the WSA-2 includes a quick counter block change device as well as welding head locking via pneumatic clamping. For further information including stock and delivery, please contact the Avantek Team on sales@avantekmachinery.co.uk.
Product Features
- For the welding of uPVC profiles
- Head 2 moves easily over precise ball bearings on hardened and polished guide railon bearings on hardened and polished guide rods
- Left welding head with automatic side shaft
- Safety-clamping system with two stage operation
- Heated welding seam restrictions. Standard: 2mm; 0.5mm seam restrictions on optional
- Electronic machine control with temperature and compressed air monitoring
- Two handed Safety operation
- Right head adjustable for welding angles of 30-180°
Technical Data
| Length | 3000mm |
| Width | 700mm |
| Height | 2100mm |
| Weight | 610kg |
| Power Supply | 240/400V,3PH,50Hz N.PE |
| Compressed air supply | 6-8bar |
| Air Consumption | 180L/min |
| Welding angle range | 30-180 |
| Knife Temperature Max | 65° C |
| Welding plate Temperature Max | 300° C |
| Profile Width Max | 140mm |
| Profile Height Max | 210mm |
