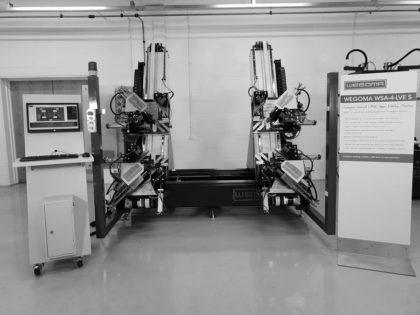

Wegoma WSA-4-LVE-S

Compact Vertical Quad Welding Machine

Description

Compact and versatile, the Wegoma WSA-4-LVE-S Compact Vertical Quad Welding Machine boasts a footprint of only 2.5m.

Enquire Now Download Brochure

Full Description

The industry’s smallest quad welder can be placed back to back with another machine or against a wall. Approximately half the size of a standard quad welder, the WSA-4-LVE-S by Wegoma boasts four automatic heads with single or double frame welding capabilities for both frames and sashes.

Manufactured from heavy duty steel, the WSA-4-LVE-S avoids any twists or deflections. The vertical movement of the machine is done via axis drive motors along a precision linear rail using four linear bearings per head. Positioning for heads is controlled with servo motors and a high precision lead screw.

Fully programmable including a ‘Burn to Size’ programme, the WSA-4-LVE-S is effortless to use. For more information on the Wegoma WSA-4-LVE-S including stock and delivery information, contact the Avantek team on sales@avantekmachinery.co.uk.



Product Features

  • Half the footprint size of a standard quad welder
  • Automatic 4 head PVCu welder with single frame or double frame welding capability for frame or sash.
  • Heavy duty steel frame, to avoid any twist or deflection
  • Vertical movement via axis drive motors along precision linear rail using 4 linear bearings per head
  • Horizontal head positioning is controlled with servo motors and a high precision lead screw
  • Small operating footprint that allows the machine to be placed up against a wall or back to back with another machin
  • Fully programmable Windows PC with instructional graphics for ease of use
  • Twice the throughput in the same space
  • Burn to size program
  • All functions are electronically monitored with fault diagnostic facilit
  • Semi automatic frame/sash ejection to ensure easy removal of welded squares
  • Transom Program allows insertion of pre-welded transoms/H-Frames
  • Frame safety system detects finished frame to prevent moving into new cycle
  • Quick release profile block system. Profile blocks can be changed in seconds
  • Infrared safety system (magic eye)
  • Optional 6ft safety fencing for 3 sides
  • Complete Pneumax air system

Technical Data

Machine Dimensions 2550mm (w) x 1900mm (d) x 2100mm (h)
Machine Weight 2200kg
Minimum Weld Size 295 x 325mm
Maximum Weld Size 1400 x 1400mm
Maximum Profile Height 200mm
Minimum Profile Height 40mm
