URBAN AKS 6400

Horizontal Four-head Welding Machine

Description

Easy to use with unrivaled efficiency and a stable network connection.

Enquire Now Download Brochure

Full Description

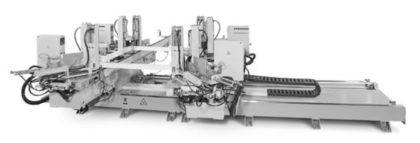

Easy to use with unrivalled efficiency and a stable network connection, the URBAN AKS-6400 Horizontal Four-head Welding Machine offers a seamless integration into an existing uPVC window fabrication line.

Fast and efficient, operators of the AKS-6400 can easily change uPVC profiles thanks to the ability to release front clamping slides horizontally. To make it even easier, the front stop lath remains in the front position so that even the final piece of profile can be easily inserted.

Exceptional with optimal adaptation, each profile’s parameters can be set individually, including joining time, welding temperature, heating time, and fusing and joining pressures. With integrated frame limitation of 40 – 200mm, automatic adjustment of fusing times for different profile cross sections and perfectly synchronised temperature regulators and heating elements.

For further information about the URBAN AKS-6400 Horizontal Four-head Welding Machine, including stock and delivery information, please contact the Avantek team on sales@avantekmachinery.co.uk.

Technical Data

Weight 2650kg
Height 1600mm
Width 5200mm
Power supply 230V/400V 50-60Hz L1-N-PE
Compressed air supply 7 Bar
Air consumption 60 Litres
Minimum profile height 40mm
Maximum profile height 250mm
Maximum finished product size 2700mm x 2500mm
