FOM ADIR C

FOM ADIR C

Description

Exceptional CNC Machining Centre with three controlled axes.

Enquire Now Download Brochure

Full Description

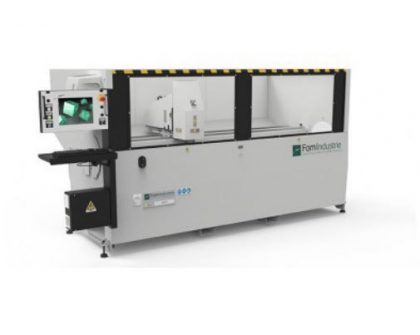

The FomIndustrie ADIR-C is an exceptional CNC Machining Centre with three controlled axes and a
worktable with pneumatic positioning. Manually adjustable with rotation available from 0° – 180°
the ADIR-C is a must-have in aluminium manufacturing.

Product Features

  • Servo-ventilated 3-phase spindle motor
  • 6 position tool-holder - manual change with pneumatic locking
  • Pneumatic table rotation 0° through 180°
  • Adjustable console with PC including 15” touchscreen monitor with keyboard and mouse
  • Four pneumatic vices with double pressure and safety valves
  • Profile reference stops on right and left - manually adjustable
  • Chip bin
  • Includes software licence and training for FOMCAM programme

Technical Data

Y Axis Longitudinal travel 2.715mm
X Axis Transversal travel 355mm
Z Axis Vertical travel 224mm
Maximum power 3 (S6)
Maximum rotation speed 12,000rpm
Cone ISO30
